These AFI heavy duty wiper motors suit a variety of arms and blades shown on following pages. The 1.5 motor will power up to 500mm arm/blade length, 2.5 motor up to 600mm arm/blade length.

• 2 Powerful motor sizes available. Fully waterproof
• Fully sealed grey powder coated aluminium waterproof housing
• 50mm length solid chrome brass drive shaft and knurled nut
• 2 speed motor (can be wired for single speed)
• Coast to park feature. Adujustable right or left park.
• RF shielded circuitry
• 80 or 110 deg sweep angle. Adjustable 45, 60, 80, 110 degrees
• Includes sealed 150mm length wires with fuse & fuse holder

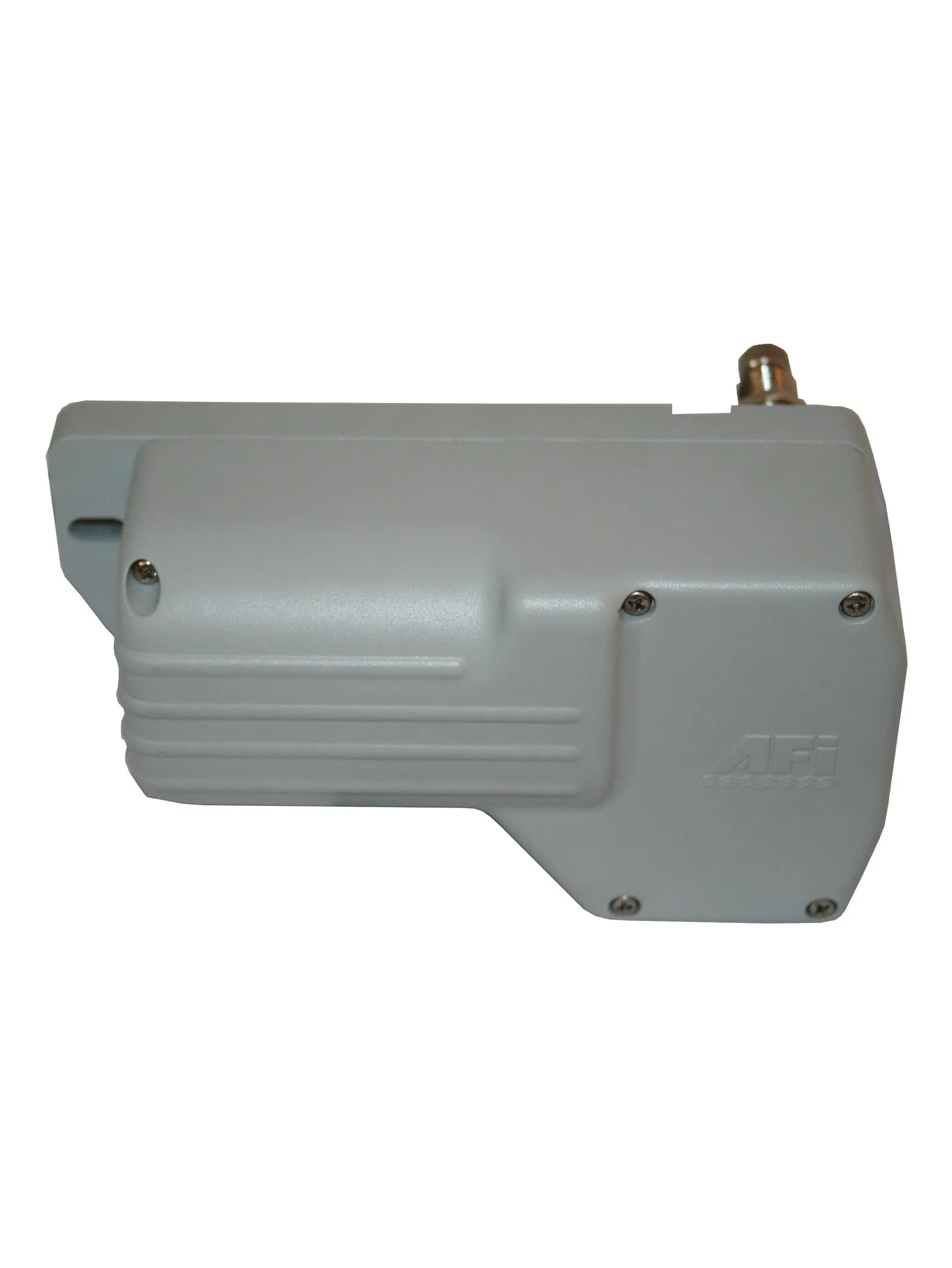

AFI 2.5 Wiper Motor:

Powers up to 600mm (24") length arm and blade combination. Available in 12v or 24v. 80 or 110 degree sweep. Sweep is also adjustable. No load current to 1.6 amp. Stall current 10.5 amps. Stall torque 160 kgf/cm 15.7 Nm

Length 201mm

Width: 108mm

Depth: 77m - plus drive arm.
